Advanced Thermostatic Heating Mantle MATHM-1D | Labomiz

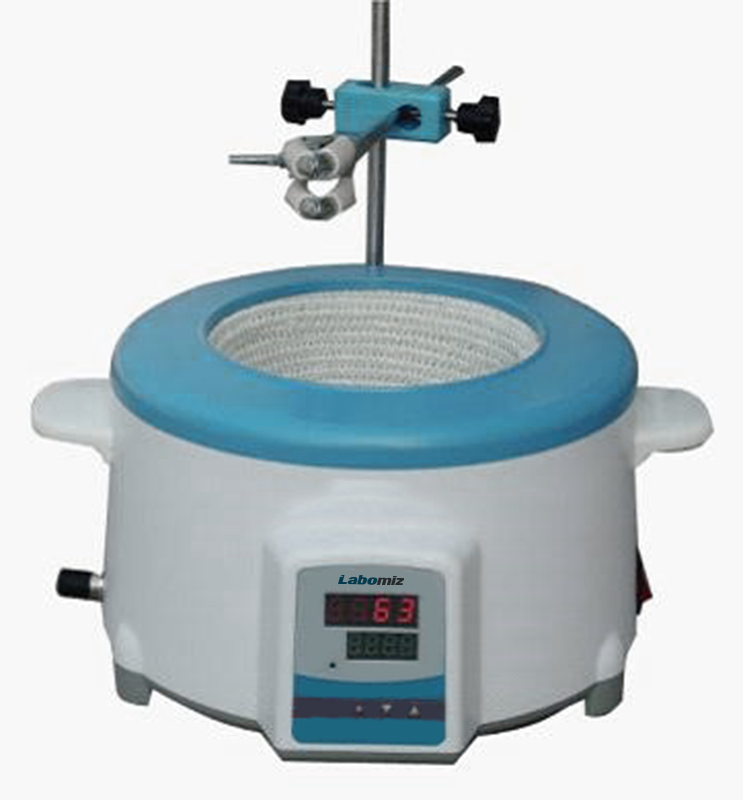

Advanced Thermostatic Heating Mantle MATHM-1D

Advanced Thermostatic Heating Mantle MATHM-1D is table top heating mantle with a capacity of 500 mL. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C. It consists of an outer thermocouple that measures and controls the liquid temperature value together with the front panel and an inner thermocouple that controls and measures the heating mantle temperature.

Capacity	500 mL
Power	220 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Voltage	160 V ̴ 240 V, 110 V ̴ 120 V

Capacity of 500 mL

Continuous working time

Alkali-free glass fiber

PID temperature control

Customized mantle available

Insulating course material of alumina silicate fiber

Used in laboratories to apply heat to containers , samples , for distillations that require high temperatures , health care and other fields

MATHM-1D

Accessory No.	Accessory	Quantity
A1	Removable holder	1
A2	Clamp with screw	1
A3	Inner Thermocouple (4 - spin)	1
A4	Outer Thermocouple (4 - spin)	1
	· Stainless Steel Length: 235mm
	· Wire length : 1000mm
A5	Magnetic bead	1
	· Designed specifically for round bottom flasks
	· PTFE - coated
	· Length: 20mm
	· Diameter : 10 mm
