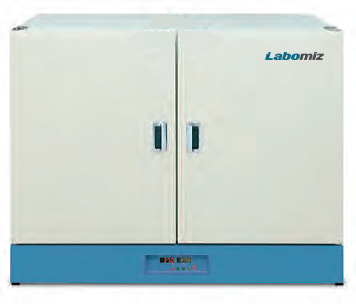

Gravity Convection Incubator MGCI-3A
Gravity Convection Incubator MGCI-3A is equipped with air jacket system for uniform temperature distribution, excellent thermal insulation and gentle air flow in chamber. Microprocessor PID auto-tuning controller installed at the bottom of the chamber controls temperature, speed and flow. Safety tempered glass inner door prevents heat loss and provide clear sample visualization. Safety devices include ELB ( elastic load balancing ), self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety.
| Capacity | 287 L ( 143.5 L × 2 chambers) |
| Chamber | 2 |
| Shelves ( Each chamber ) | 3 |
| Total shelves ( 2 chambers ) | 6 |
| Ambient temperature range | 5 °C ~ 70 °C |
| Temperature accuracy | ± 0.5 °C at 37 °C |
| Thermocouple | Pt 100 Ω |
| Heater power | 600 W |
| Power ( 1 phase ) | AC 230 V 50 Hz /60 Hz |
| Chamber dimensions ( W × D × H ) | 1020 × 440 × 640 mm × 2 chambers |
| Exterior dimensions ( W × D × H ) | 1180 × 610 × 980 mm |
| Net weight | 140 kg |
Double-door system |
Magnetic closure with positive sealing gasket (outer door) |
Ni-Cr heating element |
Digital display for parameters view and control |
Test tube racks (option) |
Stainless steel plate/shelves (interior material) |
Steel plate with powder coated finish (exterior material) |
Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
