High performance liquid chromatography MHPLC-3A | Labomiz

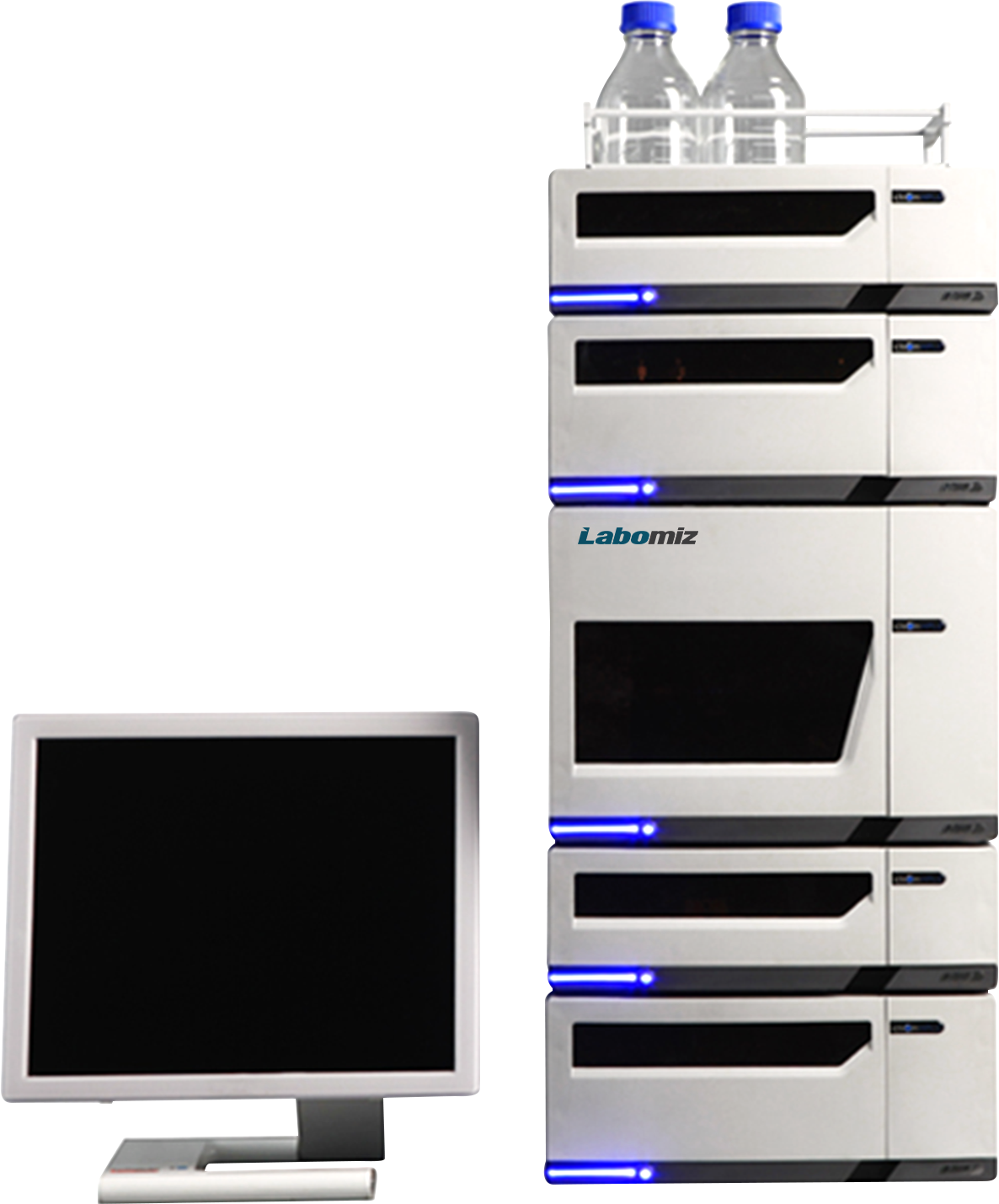

High performance liquid chromatography MHPLC-3A

High performance liquid chromatography MHPLC-3A is a unit with flow rate range of 0.001 ̴ 10.000 mL / min, in 0.001 mL. It has a wavelength range of 190 nm to 800 nm. Isocratic pump type unit that is equipped with specially designed column oven for GPC.

Pump specifications

Pump	Quaternary low pressure gradient pump(1 Set)
Flow rate range	0.001 mL / min ̴ 10.000 mL / min
Flow accuracy	≤ ± 0.2 % (1.00 ml / min, H₂O, R.T., 8.5 MPa)
Flow precision	RSD ≤ 0.075 % (1.00 ml / min, H₂O ,R.T., 8.5 MPa)
Maximum pressure	45 MPa
Pressure accuracy	≤ ± 3.0 %
Pressure pulsation	≤ 0.1 MPa

Detector specifications

Wavelength Range	190 nm ̴ 800 nm
Wavelength Repeatability	≤ 0.1 nm
Wavelength Accuracy	≤± 1.0 nm
Band Width	6 nm
Response Time	0.0 s ̴ 5 s
Baseline Noise	≤ ± 0.25 × 10 -5AU (empty cell, 254 nm, 1.0 s)
Drift	≤0.5 × 10-4AU/h (empty cell, 254nm, 60min)
Path length	10 mm(analytical cell)
Light Source	Deuterium Lamp and Tungsten Lamp
Power Supply	AC110/220V±10%, 50/60Hz

Remote controlled system

Automatic display

Sequence tables for any set of samples

Internal and external standard calculation methods

Integrated A/D converters

Prints, exports and starts other programs after the completion of a measurement

Used to split a mixture of compounds in the fields of analytical chemistry, biochemistry and industrial.

MHPLC-3A

Accessory No	Accessory
1)	Column oven
2)	Autosampler
3)	Degasser
4)	Diode array detector
5)	Refractive index detector
6)	Evaporative light scattering detector
7)	Fluorescence detector
