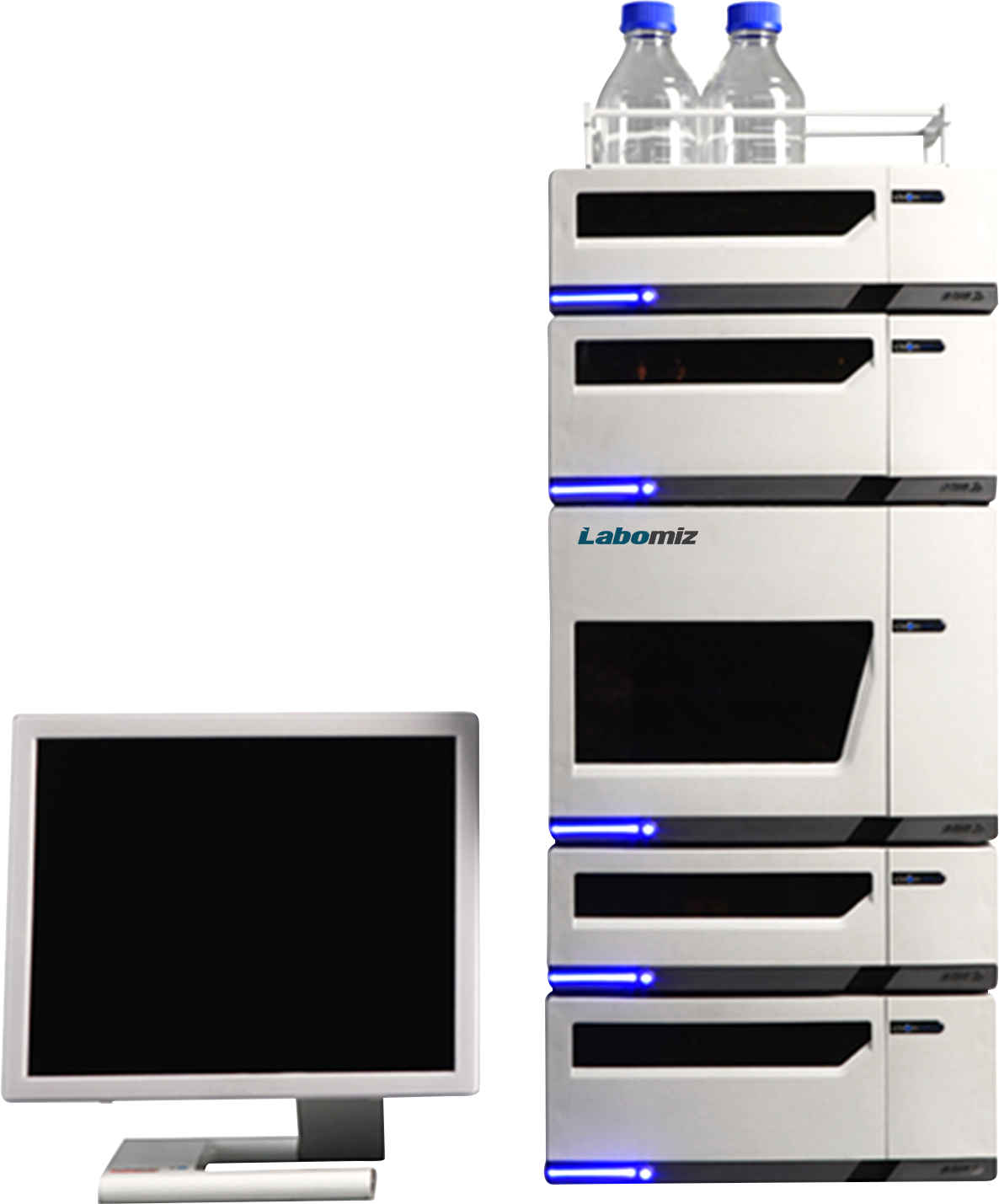

High performance liquid chromatography MHPLC-3C

High performance liquid chromatography MHPLC-3C is a unit with flow rate range of 0.001 ̴ 10.000 mL / min, in 0.001 mL. It has a wavelength range of 190 nm to 800 nm. Quaternary low pressure pump unit that is equipped with specially designed column oven for GPC.

Pump specifications

Type	Quaternary low pressure pump
Flow rate range	0.001 ̴ 10.000 mL / min, in 0.001 mL increments
Flow accuracy	≤ ± 0.2 % (1.00 ml / min, H₂O, R.T., 8.5 MPa)
Flow precision	RSD ≤ 0.06 % (1.00 ml / min, H₂O, R.T., 8.5 MPa)
Maximum pressure	63 MPa
Pressure accuracy	≤ ± 3.0 %
Pressure pulsation	≤ 0.1 MPa
Composition rang	0 ̴ 100 %
Composition precision	≤ 0.3 % RSD

Detector specifications

Wavelength range	190 nm ̴ 800 nm
Wavelength repeatability	≤ 0.1 nm
Wavelength accuracy	≤ ± 1.0 nm
Band width	6 nm
Response time	0.0 sec ̴ 5 sec
Baseline noise	≤ ± 0.25 × 10-5 AU (empty cell, 254 nm, 1.0 s)
Drift	≤ 0.5 ×10-4 AU / h (empty cell, 254 nm, 60 min)
Path length	10 mm (analytical cell)
Light source	Deuterium Lamp and Tungsten Lamp
Power supply	AC 110 V / 220 V ± 10%, 50 Hz / 60 Hz

Remote controlled system

Automatic displays

Sequence tables for any set of samples

Internal and external standard calculation methods

Prints, exports and starts other programs after the completion of a measurement

4 chamber integrated vacuum degasser

Integrated A/D converters

Used to split a mixture of compounds in the fields of analytical chemistry, biochemistry and industrial.

MHPLC-3C

Accessory No	Accessory
1)	Column oven
2)	Autosampler
3)	Degasser
4)	Diode array detector
5)	Refractive index detector
6)	Evaporative light scattering detector
7)	Fluorescence detector
