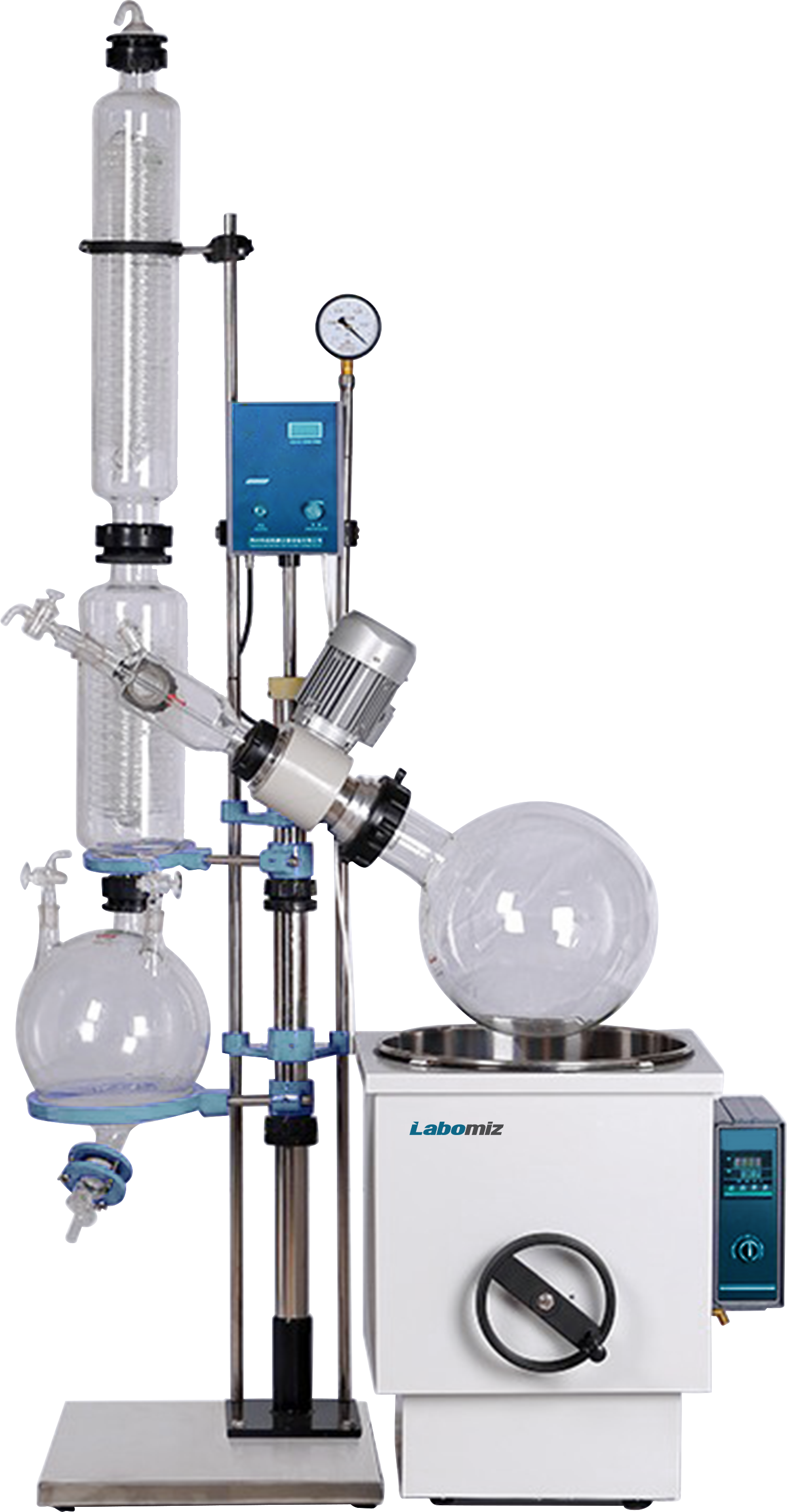

Large capacity rotary evaporator MLCRE-1C
Large capacity rotary evaporator MLCRE-1C features an efficient vacuum pump and comprises a double condenser that allows 95% of collection and facilitates smooth distillation. With a rotary flask having the capacity of 50 L , this instrument can process large amount of the sample. The rotating speed from 0 to 140 rpm enables proper evaporation, mixing and extraction of the solvent.
| Rotary flask | 50 L |
| Collecting flask | 20 L |
| Rotating speed | 0 rpm ~ 140 rpm |
| Evaporation speed | > 9 L/h |
| Condenser cooling surface | 1.5 m2 |
| Motor power | 180 W |
| Vacuum degree | ＜133 pa |
| Sealing mode | PTFE Sealing System |
| Water bath configuration | Water bath lifting |
| Water bath power | 9 kW |
| Static temperature control range | 0 ℃ ~ 99 ℃ |
| Temp fluctuation/ resolution | ±1/1 ℃ |
| Condenser | Vertical Double Condenser |
| Voltage | 380 V; 50 Hz |
EL-gas tight system with high vacuum degree |
Gas liquid separator and no reflux |
Double condenser with a collection rate over 95% |
Continuous feeding is available |
Water bath, intelligent PID temperature controller, can be lifted up and down |
Stainless steel and aluminum die casting for mechanical parts |
Glass parts are made of borosilicate glass |
Explosion proof system |
Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery.
