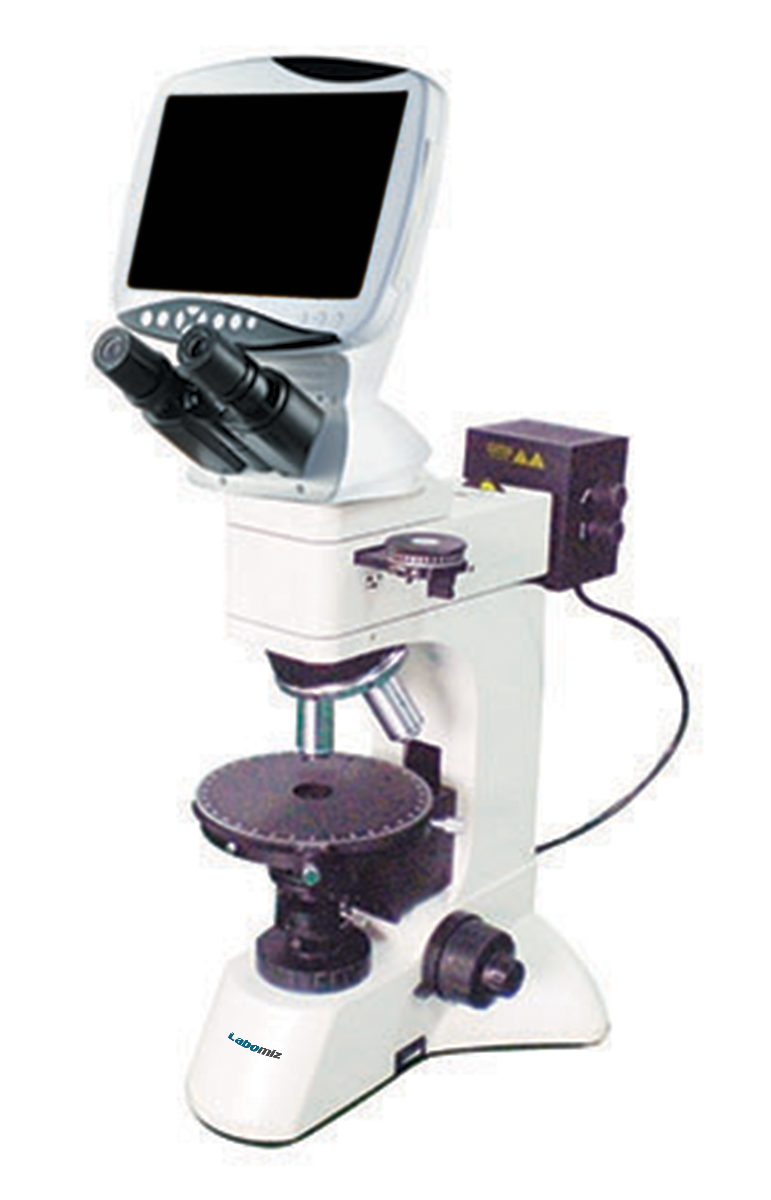

LCD Digital Polarizing Microscope MLDPM-1A
LCD digital polarizing microscope MLDPM-1A is a bench-top unit integrated with Siedentopf binocular head for fine focusing. HD LCD screen for viewing the images. Built-in provision to capture quick and short video. Coaxial coarse and fine adjustment focus knob with tension adjustment aids in mobility of the objective lenses. Polarizing unit contains 360 degree rotatable polarizer and analyzer.
| Viewing head | Siedentopf binocular |
| Eyepiece ( Wide field plan eyepieces ) | WF10X / 18 mm |
| Image resolution | 12 MP |
| Video resolution | 1920 × 1080 / 30fps |
| HD LCD Screen | 9 inch |
| Resolution | 1280 × 800 |
| Plan achromatic objective | PL L5X / 0.12, W.D : 26.1 mm PL L10X / 0.25, W.D : 20.2 mm PL L40X / 0.60 (spring), W.D : 3.98 mm PL L60X / 0.70 (spring), W.D : 3.18 mm |
| Minimum division of fine focusing | 2 μm |
| Compensator | λ, λ/4 and Quarts wedge compensator |
| Illumination | 6 V ; 30 W |
| Storage | 4G SD Card |
| Sensor size | 1 / 2.5 inches |
| Power supply | 85 V / 60 Hz 265V / 50 Hz |
Real time LCD screen to view image / video ( 12 MP camera ) |
Data store and print ( images and videos ) |
HDMI interface connecting to LCD monitor ( Projector ) |
Automated camera exposure |
Quadruple nosepiece ( Adjustable objective center ) |
Centrally adjustable puller type Bertrand lens |
Used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. Widely applied in mineralogy, biology, chemistry, botany, plant pathology, zoology and other field.
