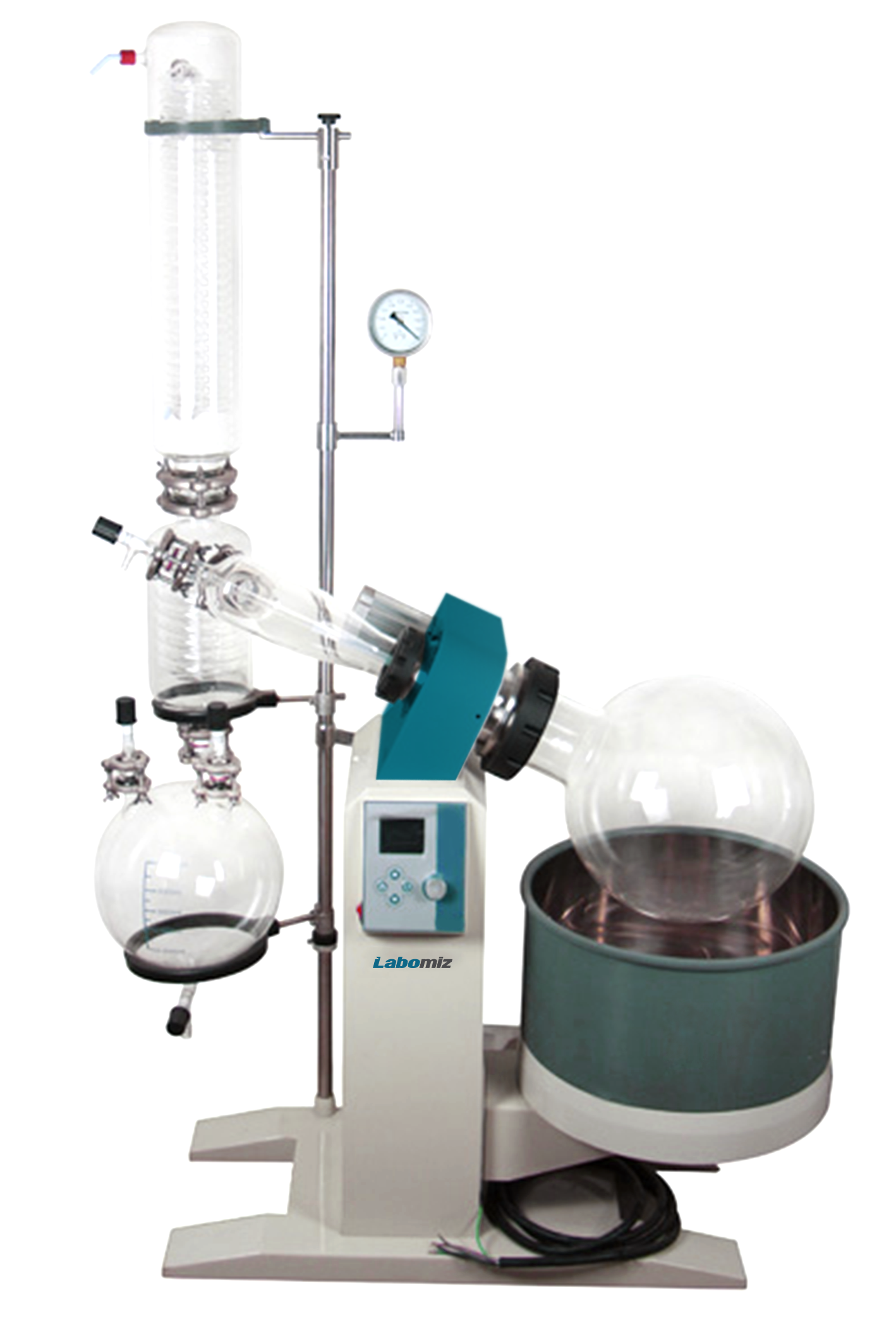

Motor lift rotary evaporator MLRE-1G

Motor lift rotary evaporator MLRE-1G is equipped with a 50 L evaporating flask. It has a condensate area of 1.2 m2 and it features a flask rotation speed of 0 rpm to 120 rpm. It consists of a PID temperature controller that assures accurate temperature control. Vertical with dual-spiral glass tubing condenser. Safety features such as over temperature and fuse protections are available.

Evaporating flask50 L
Receiving flask30 L
Flask rotating speed0 rpm ̴ 120 rpm
Condensate area1.5 m2
Motor power250 W
Heating power6 kW
Vacuum degree20 mbar
Water bathRT ̴ 99 °C
Oil bathRT ̴ 180 °C
Water bath sizeΦ550 × 320 mm
Water bath power6 kW
Voltage180 V

Motor lift is easy to operate, moves up and down slowly and easy to lock

LCD display for visual monitoring of speed

Vibration - free operation

Double seal of PTFE and Viton ensures high vacuum

Material is corrosion resistant

Large condensing area for high efficiency condensing

Condensate liquid is ethanol

High quality stainless steel main rack

Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery.
