Analog 6-Position Heating Mantle MSPM-3D | Labomiz

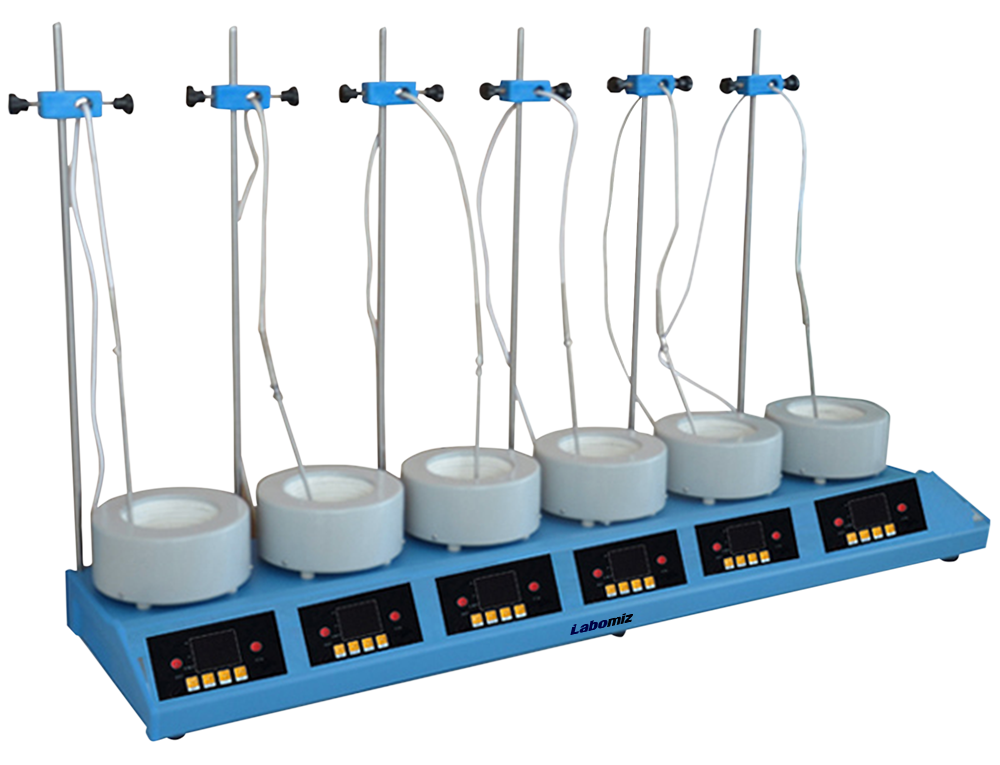

Analog 6-Position Heating Mantle MSPM-3D

Analog 6-Position Heating Mantle MSPM-3D is an intelligent digital display for both stirrer and temperature with a capacity of 500 mL. It has a stirring speed range of 0 rpm to 2500 rpm. It features a PID temperature controller and has an optimum temperature of 380 °C with maximum temperature resistance up to 450 °C.

Capacity	500 ml
Power	220 W
Temperature	380 °C
Temperature accuracy	± 1 °C
Stirring speed range	0 rpm ̴ 2500 rpm
Speed accuracy	± 1 rpm
Position	6
Voltage	160 V ̴ 240 V, 110 V ̴ 120 V

Capacity of 500 mL

Continuous working time

Alkali-free glass fiber

PID temperature control with inner and outer thermocouple

Insulating course material of alumina silicate fiber

Used in industrial, agricultural, civil, national defense, science and technology and health care and other fields.

MSPM-3D

Accessory No.	Accessory	Quantity
A1	Removable holder	1
A2	Clamp with screw	1
A3	Inner Thermocouple (4 - spin)	1
A4	Outer Thermocouple (4 - spin)	1
	· Stainless Steel Length: 235mm
	· Wire length : 1000mm
A5	Magnetic bead	1
	· Designed specifically for round bottom flasks
	· PTFE - coated
	· Length: 20mm
	· Diameter : 10 mm
