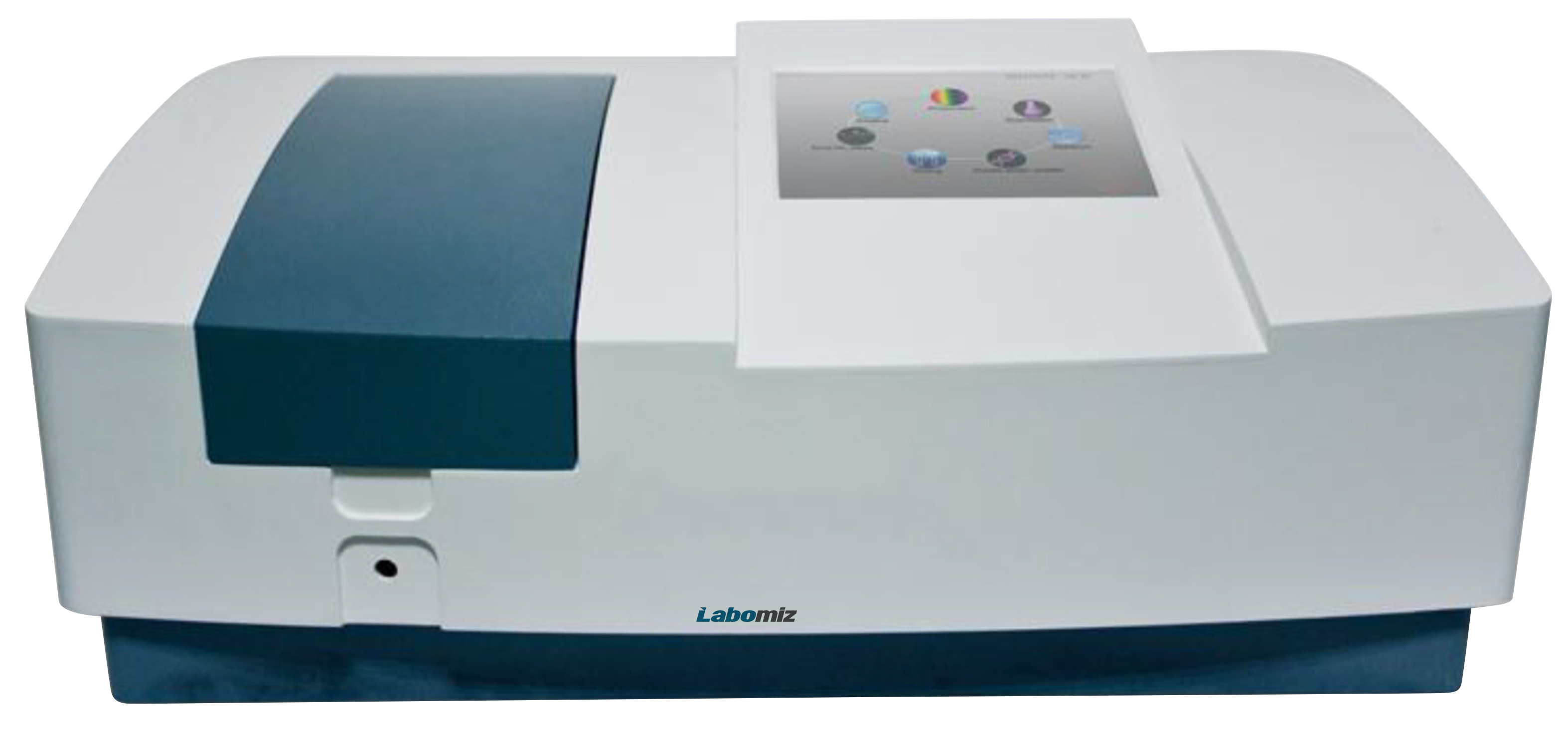

Touch screen UV-Visible Spectrophotometer MTUVS-1E
Touch screen UV-Visible Spectrophotometer MTUVS-1E is a double beam light intensity measuring unit with wavelength range 190 nm ~ 1100 nm. It is equipped with color LCD touch screen control panel with tungsten and deuterium lamp as a light source ensuring stable output. Incorporated with high performance 64-bit A/D converter for optical data acquisition and sample processing. Individual design of optical and electrical system prevents cross effect of sample processing.
| Optical system | Double beam |
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 0.5 nm ,1 nm, 2 nm, 4 nm, 5 nm |
| Wavelength accuracy | ± 0.3 mm |
| Wavelength repeatability | 0.1 nm |
| Display | 9 inches VGA |
| Detector | Silicon photodiode |
| Scan speed | HIGH, MEDIUM, LOW |
| Stray light | 0.05 % T at 220 nm,360 nm |
| Light source | Tungsten and Deuterium |
| Power | AC 110 V,50 Hz AC 220 V,60 Hz |
| Dimensions ( L x W x H ) | 595 x 430 x 210 mm |
| Weight | 29 kg |
Double beam optical system |
Detector - Silicon photodiode |
Large data storage capacity |
32-bit microcontroller optimizes measurement speed |
Output - USB , SD and parallel port for printer |
Mirror surface coating with SiO2 film prevents optical parts corrosion |
Used in biochemistry, clinical and research labs, pharmaceutical, agriculture, environmental protection for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
