Visible Spectrophotometer MVSP-1B | Labomiz

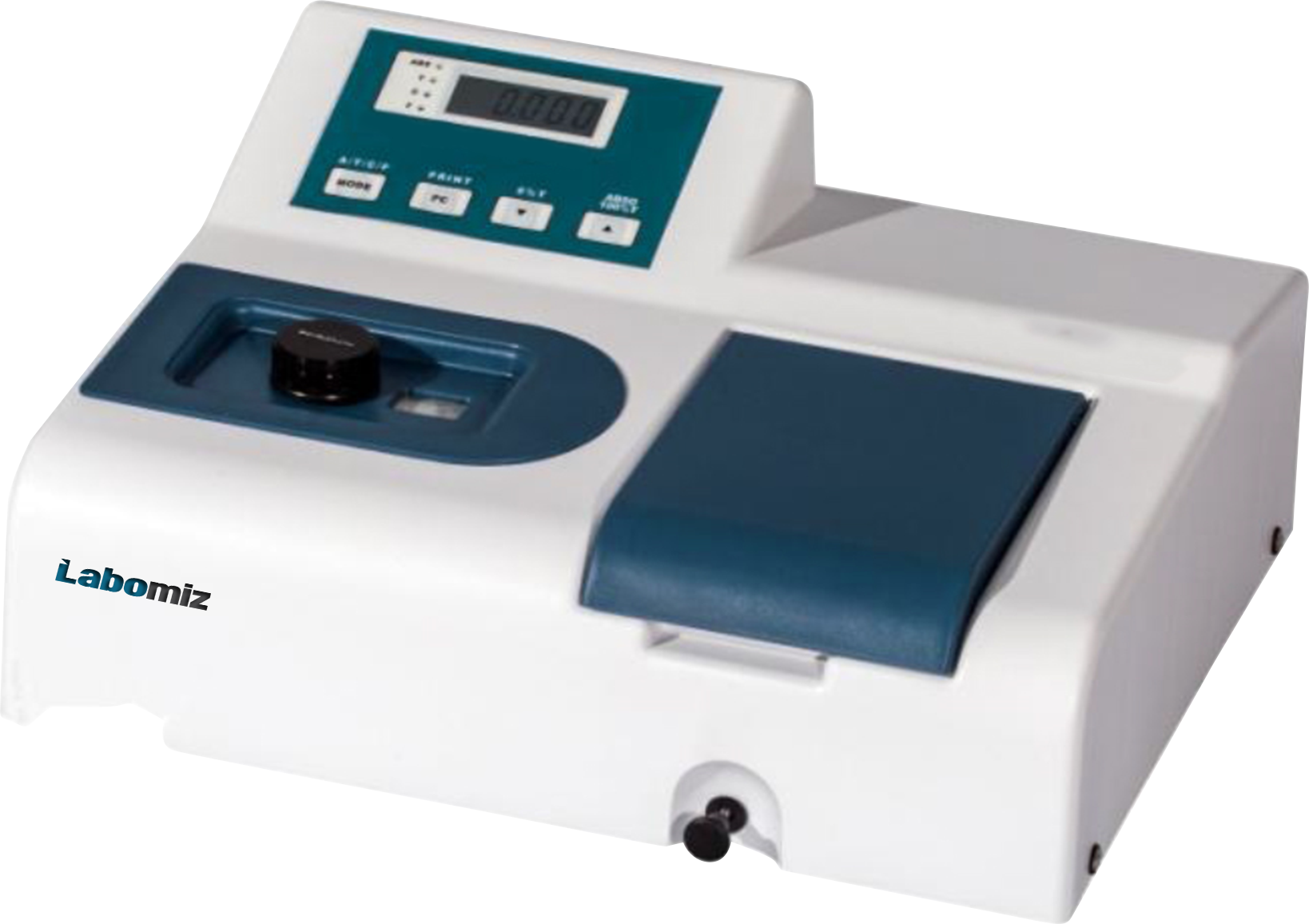

Visible Spectrophotometer MVSP-1B

Visible Spectrophotometer MVSP-1B is a light intensity measuring unit with wavelength range 320 nm ~ 1020 nm. Achromatic Czerny-Turner optical system and automatic light door function with manual wavelength setting ensures stable output. It is equipped with large sample chamber for accommodating cuvettes with tungsten lamp as light source increasing metering accuracy.

Optical system	Achromatic Czerny-Turner (1200 L/mm grating)
Wavelength range	350 nm ~ 1020 nm
Spectral bandwidth	4 nm
Wavelength accuracy	± 2 nm
Wavelength repeatability	0.5 nm
Wavelength setting	Manual
Display	4-bit LCD
Detector	Silicon photodiode
Stray light	0.2 % T at 360 nm
Photometric accuracy	0.3 % T
Photometric repeatability	0.2 % T
Drift	0.1 % T
Noise	≤ 0.2 % T
Stability	± 0.002 A/h at 500 nm
Light source	Tungsten
Measurement modes	T,A,C
Power	AC 110 V,50 Hz AC 220 V,60 Hz
Weight	8 kg

LCD digital displays data

Automatic wavelength calibration

Automatic zero and full scale adjustment

Light source-Tungsten lamp (long life)

Large sample chamber - upto 100 mm cuvette

Diffraction grating 1200L / mm ensures precise spectral results

Optional RS-232 interface for output connection

Used in biochemistry, clinical and research labs, petrochemical, agriculture, environmental protection for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.

MVSP-1B
